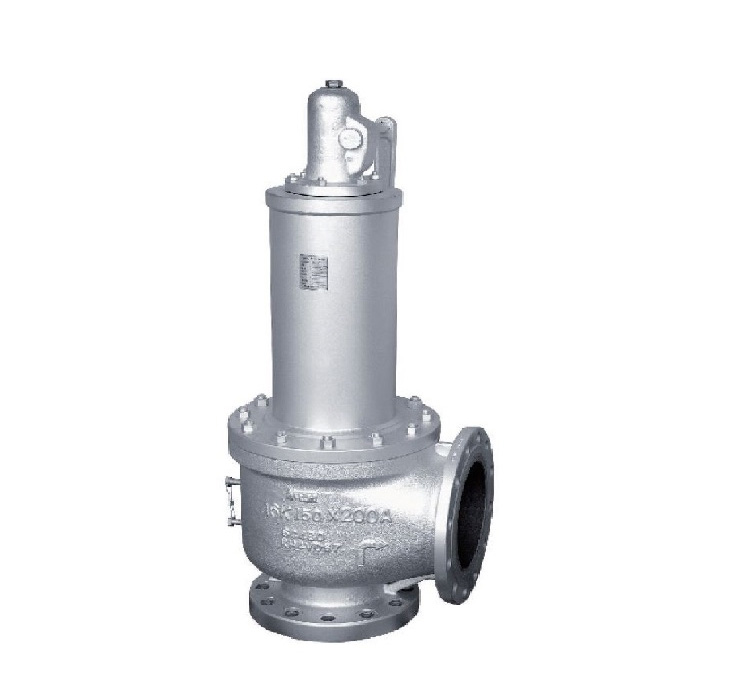

Safety Relief Valves (Full Bore Type)
- Model
- HSF (SC00C)
- Applicable Fluid
- Air, Gas, Liquid, Steam
- Applicable Pressure
- 1~33 kgf/cm²
- Applicable Temperature
- Max. 220°C
- End Connection
- JIS & ANSI
- Size
- 15x25A, 20x25A, 25x40A, 25x50A, 40x50A, 40x65A, 50x80A, 65x150A, 80x100A, 80x125A, 100x150A, 125x200A, 150x200A, 200x250A, 250Ax300A
- Material
- Body : Cast Steel / Iron, Bronze
Disc : Stainless Steel
Introduction
This valve is used for the safety of various pressure devices such as boiler, tank and piping.
It automatically operates and discharges fluid when the pressure of valve inlet increases and reaches to the specified value.
When the pressure is decreased to the specified value, it is automatically closed.
It automatically operates and discharges fluid when the pressure of valve inlet increases and reaches to the specified value.
When the pressure is decreased to the specified value, it is automatically closed.
Special feature
It is installed in ship boiler, economizer, air tank and steam/air/liquid line to quickly carry out pressure escape by popping at overload of equipment and pipes.
It can be used for both compressible fluid and non-compressible fluid.
It can be used for both compressible fluid and non-compressible fluid.
