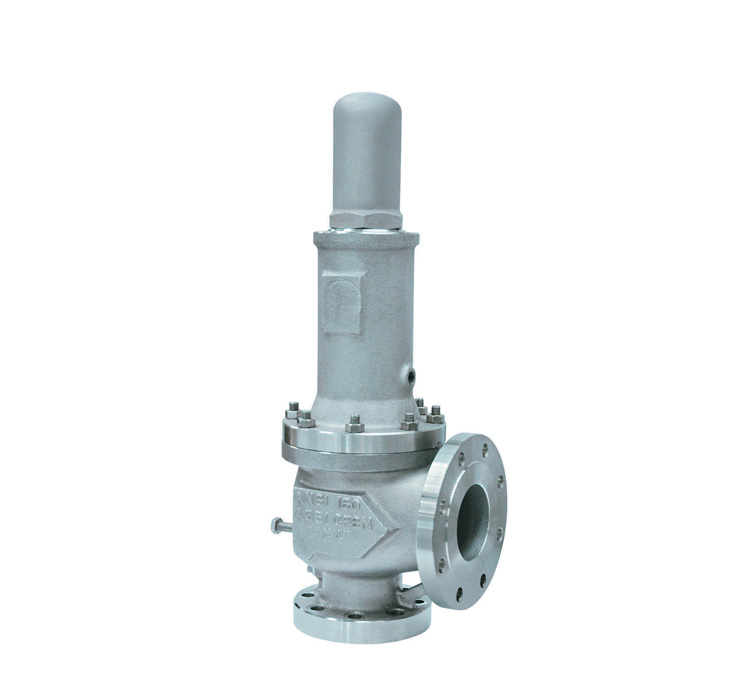

Conventional Safety Relief Valve
- Model
- HSF-FCA
- Applicable Fluid
- Liquedfied Gas / LNG / LPG / LEG / LN2 / LO2 / LAr
- Applicable Pressure
- 1~10 kgf /cm², 1~135 kgf /cm²
- Applicable Temperature
- -196 ~ 50°C
- End Connection
- ANSI & JIS
- Size
- 3/4x1, 1x2, 1-1/2x2, 1-1/2x2-1/2, 1-1/2x3, 2x3, 3x4, 4x6
- Material
- Body / Disc : Stainless Steel
- Procedure and test based on international standard
- - ANSI rule for fitting, valve-flanged
- API rule Seat Tightness of pressure
- ASME rule for installation and operation
Introduction
This valve is used for the safety of various pressure devices such as boiler. tank and piping.
It automatically operates and discharges fluid when the pressure of valve inlet increases and reaches to the specified value.
When the pressure is decreased to the specified value. it is automatically closed.
It automatically operates and discharges fluid when the pressure of valve inlet increases and reaches to the specified value.
When the pressure is decreased to the specified value. it is automatically closed.
Special feature
It is installed in ship boiler, economizer, air tank and steam/air/liquid line to quickly carry out pressure escape by popping at overload of equipment and pipes.
It can be used for both compressible fluid and non-compressible fluid.
It can be used for both compressible fluid and non-compressible fluid.
